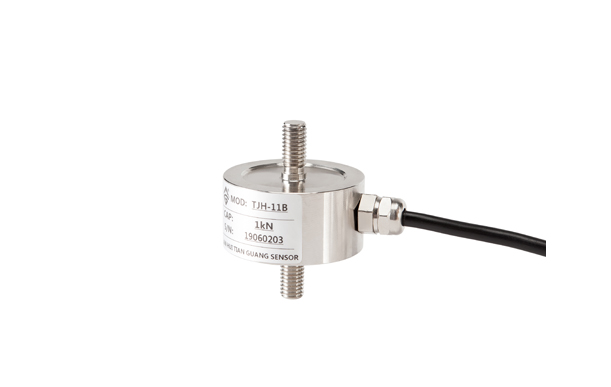

Handbrake Force Sensor

Easy to install, strong anti-eccentric load capacity, good sealing. Suitable for braking force detection of vehicles.


rigging load cell
tension load cell
tension type load cell
tension loadcells

Specifications of TJL-11 Handbrake Force Sensor


Technical Parameter
Rated Load0.5~1.5 kN
Comprehensive Precision0.3% FS
Sensitivity1.5 mV/V
Creep±0.05% FS/30min
Zero Output±1% FS
Temperature Effect On Zero±0.05% FS/10℃
Temperature Effect On Output±0.05% FS/10℃
Operating Temperature Range-20~+65 ℃
Input Resistance380±10 Ω
Output Resistance350± 3 Ω
Insulation Resistance>5000 MΩ
Safe Load Limit150% FS
Bridge VoltageReference 10V DC
MaterialAlloy Steel
Load Cell Mode Of ConnectionInput+: Red
Input-: Black
Output+: Green
Output-: White


Dimension Drawing of TJL-11 Handbrake Force Sensor

Dimension Drawing of TJL-11 Handbrake Force Sensor
