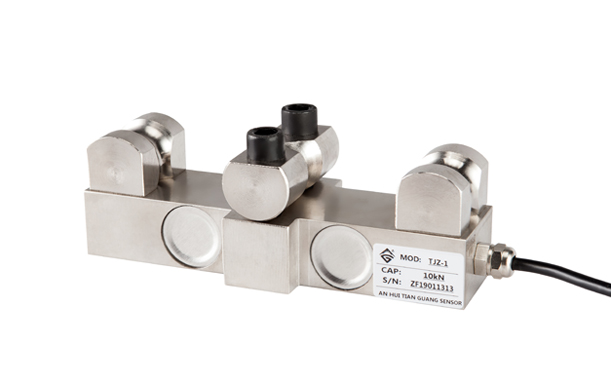

TJZ-1 Rope Tension Load Cell

High precision and stable performance. Suitable for long-term measurement and monitoring of wire rope tension.


tjz 1 rope tension load cell
tjz 1 wire rope tension load cell
tjz 1 wire rope load cell
tjz 1 rope load cell

Specifications of TJZ-1 Rope Tension Load Cell


Technical Parameter
Rated Load10~200 kN
Comprehensive Precision0.3% FS
Sensitivity1.0~1.5 mV/V
Creep±0.05% FS/30min
Zero Output±1% FS
Temperature Effect On Zero±0.05% FS/10℃
Temperature Effect On Output±0.05% FS/10℃
Operating Temperature Range-20~+65 ℃
Input Resistance750±15 Ω
Output Resistance750± 5 Ω
Insulation Resistance>5000 MΩ
Safe Load Limit150% FS
Bridge VoltageReference 10V DC
MaterialAlloy Steel or Stainless Steel
Load Cell Mode Of ConnectionInput+: Red
Input-: Black
Output+: Green
Output-: White


Dimension Drawing of TJZ-1 Rope Tension Load Cell

Dimension Drawing of TJZ-1 Rope Tension Load Cell
