Weighing Accessories

TG Loadcells offers a wide range of professional weighing accessories, such as load cell amplifiers, load cell indicators, load cell digital module, load cell signal high-speed collector, wireless transceiver, weighbridge junction box, etc. Weighing indicators can be used to read and transmit signals; load cell amplifiers and digital module are used to convert load cell signals to analog or digital signals, wireless transceiver can transmit load cell signals over long distances, and the receiving end can be matched with indicators or amplifiers. All of our weighing accessories are designed to make your weighing process more convenient, efficient and safe.

Types of Weighing Accessories

Load Cell Amplifiers

The weighing amplifier/transmitter is a signal amplification device. It is usually used to convert the load cell mV signal into a standard analog signal, and can receive up to 4 sensor signals.

Weighing Indicator

The weighing indicator is used to convert the electrical signal of the load cell into an indication that can be read directly. TG sensor company provide weighing display instruments with multiple functions and different purposes.

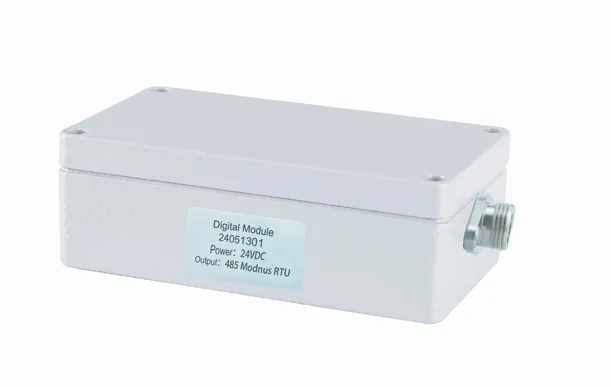

Load Cell Digital Module

The Load cell digital module can convert the mV signal of the load cell to the 485 digital signal of Modbus RTU protocol. The product supports 9-36V wide voltage power supply, and can be built into the sensor.

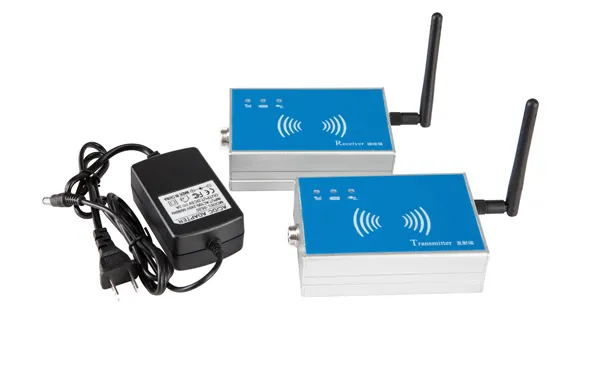

Load Cell Wireless Transceiver

Load cell wireless transceivers are used to transmit load cell signals over long distances, up to 600 meters. The transmitter has a lithium battery to power the sensor. The receiving end can be connected to amplifiers, weighing indicators and other equipment, and supports multiple receiving.

Load Cell Signal High-speed Collector

TCHS Load cell signal high-speed collector is used to capture very short instantaneous force, the highest frequency can reach 3500 times per second, suitable for continuous force measurement, instant force measurement, impact force testing and other test occasions.

TG One Load Cell Data Acquisition Management Software

TG one weighing data acquisition software can collect weighing data from multiple sensors and save them. The weighing data can be formed into a real-time force value curve, which is convenient for customers to perform data analysis.

TJXH Load Cell Junction Box

The stainless steel junction box adopts a stainless steel shell with a beautiful appearance. Used to connect up to 8 sensor signals and transmit them to back-end devices.
More Products

Load Cell Basic Checks

A load cell is a device that is used to measure weight or force. When a force is applied to it in a specific manner, a load cell for sale produces an output signal that is proportional to the applied force.

We can judge the working status of the sensor by the following parameters

1. Zero offset

Under the specified excitation voltage, a zero load output greater than the manufacturer's specification is a good indication that the load cell may have been damaged. This is usually the case after the sensor is overloaded, It may also be caused by humidity.

2. Zero instability

The zero load output of the load cell is unstable under the rated excitation voltage, which may be caused by the leakage of the load cell circuit due to moisture. Such instability will occur during the weighing process, resulting in failure to read.

3.Output/input Resistance

Judge the internal circuit status of the load cell by measuring the output/input Resistance and the resistance of the adjacent arm. It is worth mentioning that, in order to adjust the output sensitivity of the load cell sensor amplifier, the load cell manufacturer will slightly increase the input Resistance of the load cell. For a 350Ω load cell, the input Resistance is generally around 380Ω.

4. Insulation Resistance

Insulation resistance is a good indication of the integrity of a load cell. We can test it with a hand-cranked electric meter. Generally the insulation resistance should be greater than 5000MΩ
