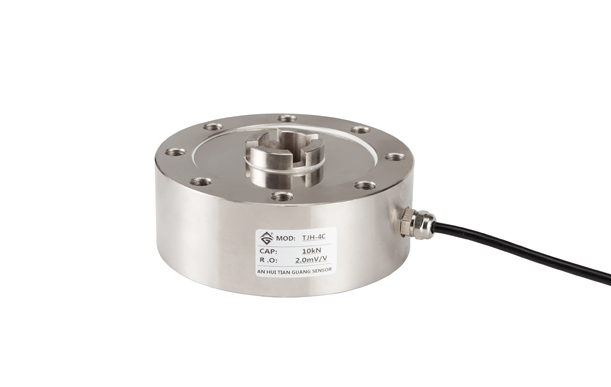

TJH-4C Pancake Load Cell

Low height, good rigidity, high accuracy, strong anti-offset capacity. Widely used in belt scale, hopper scale, warehouse scale, charging bucket, material mechanics testing machine, labor safety testing equipment, etc.

tjh 4c circular load cell
tjh 4c pancake load cell
tjh 4c pancake load cells

Specifications of TJH-4C Spoke Type Load Cell


Technical Parameter
Rated Load10~100 kN
Comprehensive Precision0.05~0.1% FS
Sensitivity2.0 mV/V
Creep±0.05% FS/30min
Zero Output±1% FS
Temperature Effect On Zero±0.05% FS/10℃
Temperature Effect On Output±0.05% FS/10℃
Operating Temperature Range-20~+65 ℃
Input Resistance380±10 or 750±15 Ω
Output Resistance350± 3 or 750± 5 Ω
Insulation Resistance>5000 MΩ
Safe Load Limit150% FS
Bridge VoltageReference 10V DC
MaterialAlloy Steel or Stainless Steel
Load Cell Mode Of ConnectionInput+: Red
Input-: Black
Output+: Green
Output-: White


Dimension Drawing of TJH-4C Spoke Type Load Cell

Dimension Drawing of TJH-4C Spoke Type Load Cell
