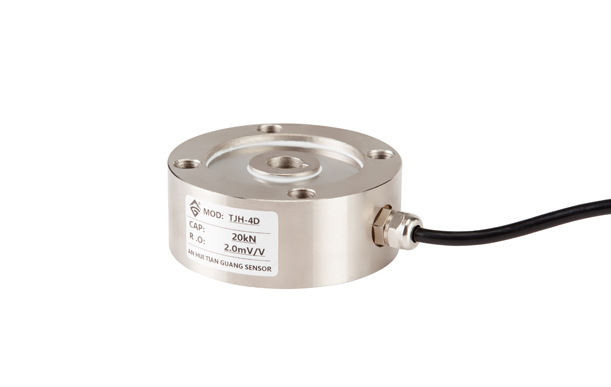

TJH-4D Pancake Load Cell

Small size, high precision, strong anti-offset capacity. Widely used in force measurement of belt scale, hopper scale, tension testing machine and other equipment.


TJH-4D Pancake Load Cell

Specifications of TJH-4D Spoke Type Load Cell


Technical Parameter
Rated Load0.5~20 kN
Comprehensive Precision0.05% FS
Sensitivity2.0 mV/V
Creep±0.05% FS/30min
Zero Output±1% FS
Temperature Effect On Zero±0.05% FS/10℃
Temperature Effect On Output±0.05% FS/10℃
Operating Temperature Range-20~+65 ℃
Input Resistance380±10 or 750±15 Ω
Output Resistance350± 3 or 750± 5 Ω
Insulation Resistance>5000 MΩ
Safe Load Limit150% FS
Bridge VoltageReference 10V DC
MaterialAlloy Steel or Stainless Steel
Load Cell Mode Of ConnectionInput+: Red
Input-: Black
Output+: Green
Output-: White


Dimension Drawing of TJH-4D Spoke Type Load Cell

Dimension Drawing of TJH-4D Spoke Type Load Cell
