MAKE FORCE SENSORS SAFER AND SMARTER
Widely used in various occasions requiring force measurement and process monitoring.

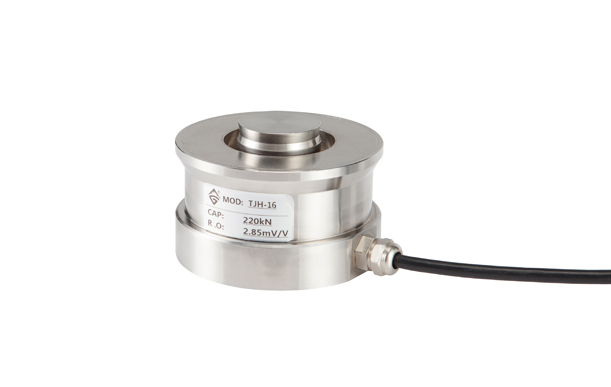

Ring Torsion Load Cell

Ring torsion load cell is made of stainless steel, small in size, strong in anti-overload capability, large range, high sensitivity, high precision, and good anti-eccentric load performance. The high impedance and low power consumption make it very suitable for battery-powered measurement units. It is suitable for various weighing equipment occasions such as electronic weighing apparatus and tensile testing machine.


Ring Torsion Load Cell

Specifications of TJH-16 Ring Torsion Load Cell


Technical Parameter
Rated Load10~1500 kN
Comprehensive Precision0.05~0.1% FS
Sensitivity2.85 mV/V
Creep±0.05% FS/30min
Zero Output±1% FS
Temperature Effect On Zero±0.05% FS/10℃
Temperature Effect On Output±0.05% FS/10℃
Operating Temperature Range-20~+65 ℃
Input Resistance4450±200 Ω
Output Resistance4000± 10 Ω
Insulation Resistance>5000 MΩ
Safe Load Limit150% FS
Bridge VoltageReference 10V DC
MaterialStainless Steel
Load Cell Mode Of ConnectionInput+: Red
Input-: Black
Output+: Green
Output-: White


Dimension Drawing of TJH-16 Ring Torsion Load Cell

Dimension Drawing of TJH-16 Ring Torsion Load Cell
