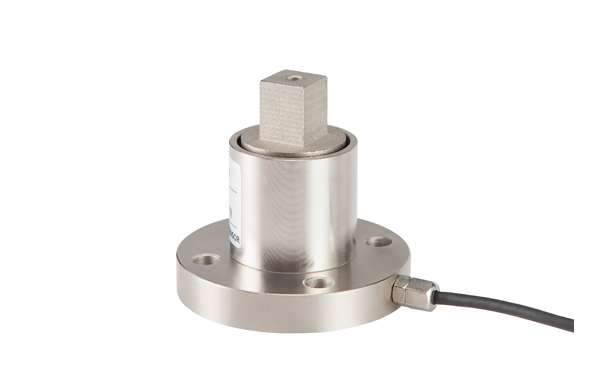

TJN-5 Static Torque Sensor

The TJN-5  static torque measurement  sensor is suitable for the measurement and control of static and discontinuous rotation torque.

TJN-5 Static Torque Sensor

Specifications of TJN-5 Static Torque Sensor


Technical Parameter
Rated Load2~3000 Nm
Comprehensive Precision0.3~0.5% FS
Sensitivity1.0~1.5 mV/V
Creep±0.05% FS/30min
Zero Output±1% FS
Temperature Effect On Zero±0.05% FS/10℃
Temperature Effect On Output±0.05% FS/10℃
Operating Temperature Range-20~+65 ℃
Input Resistance380±10 or 750±30 Ω
Output Resistance350± 3 or 750± 5 Ω
Insulation Resistance>5000 MΩ
Safe Load Limit150% FS
Bridge VoltageReference 10V DC
MaterialAlloy Steel
Load Cell Mode Of ConnectionInput+: Red
Input-: Black
Output+: Green
Output-: White

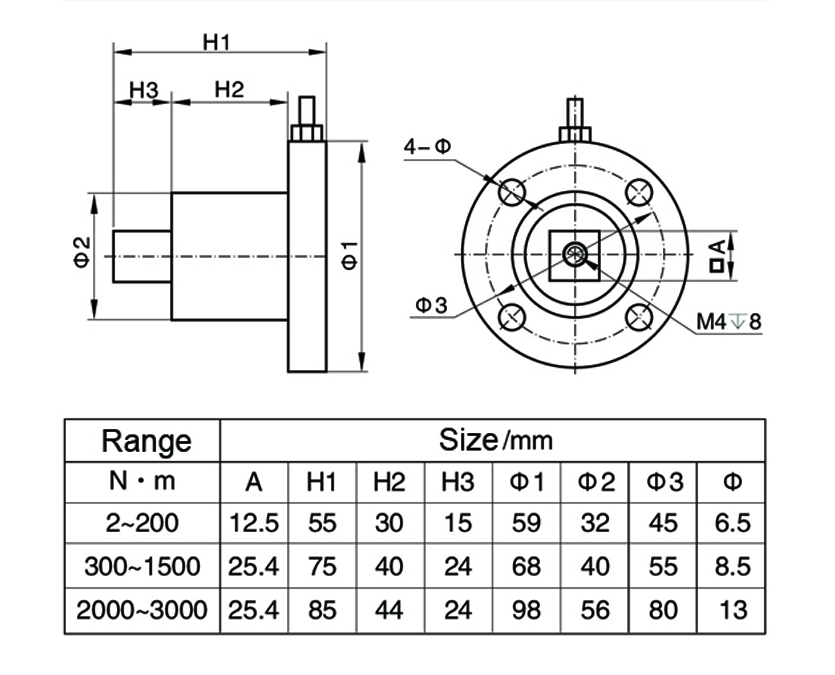

Dimension Drawing of TJN-5 Static Torque Sensor

Dimension Drawing of TJN-5 Static Torque Sensor
