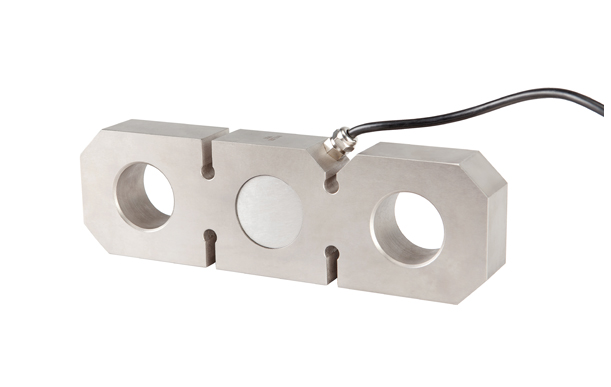

Plate Ring Tension Load Cell

High precision, strong anti-overload ability, sealing and moisture-proof. Widely used in various hook scales, ports, wharfs, crane overload protection equipment, etc. This tension type load cell can be used with built-in wireless transceiver.

crane scale load cell
crane load cell
hoist load cells

Specifications of TJL-7 Plate Ring Tension Load Cell


Technical Parameter
Rated Load20~2000 kN
Comprehensive Precision0.03~0.1% FS
Sensitivity1.5、2.0 mV/V
Creep±0.02% FS/30min
Zero Output±1% FS
Temperature Effect On Zero±0.02% FS/10℃
Temperature Effect On Output±0.02% FS/10℃
Operating Temperature Range-20~+65 ℃
Input Resistance380±10 Ω
Output Resistance350± 3 Ω
Insulation Resistance>5000 MΩ
Safe Load Limit150% FS
Bridge VoltageReference 10V DC
MaterialAlloy Steel
Load Cell Mode Of ConnectionInput+: Red
Input-: Black
Output+: Green
Output-: White


Dimension Drawing of TJL-7 Plate Ring Tension Load Cell

Dimension Drawing of TJL-7 Plate Ring Tension Load Cell
