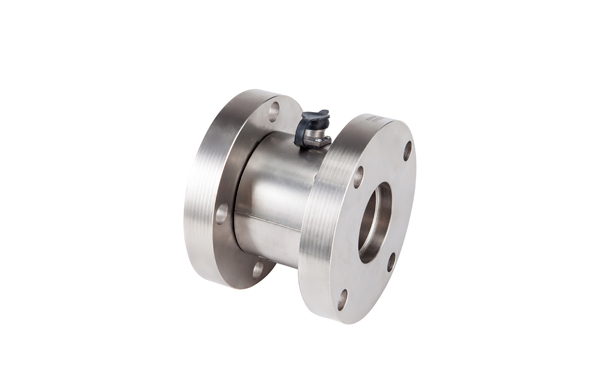

TJN-3 Static Torque Sensor

Double flange connection, easy to install. Suitable for the measurement and control of static and discontinuous rotation torque.

TJN-3 Static Torque Sensor

Specifications of TJN-3 Static Torque Sensor


Technical Parameter
Rated Load1000~5000 Nm
Comprehensive Precision0.1~0.5% FS
Sensitivity1.0~2.0 mV/V
Creep±0.05% FS/30min
Zero Output±1% FS
Temperature Effect On Zero±0.05% FS/10℃
Temperature Effect On Output±0.05% FS/10℃
Operating Temperature Range-20~+65 ℃
Input Resistance380±10 or 750±15 Ω
Output Resistance350± 3 or 750± 5 Ω
Insulation Resistance>5000 MΩ
Safe Load Limit120% FS
Bridge VoltageReference 10V DC
MaterialAlloy Steel
Load Cell Mode Of ConnectionInput+: Red
Input-: Black
Output+: Green
Output-: White


Dimension Drawing of TJN-3 Static Torque Sensor

Dimension Drawing of TJN-3 Static Torque Sensor
