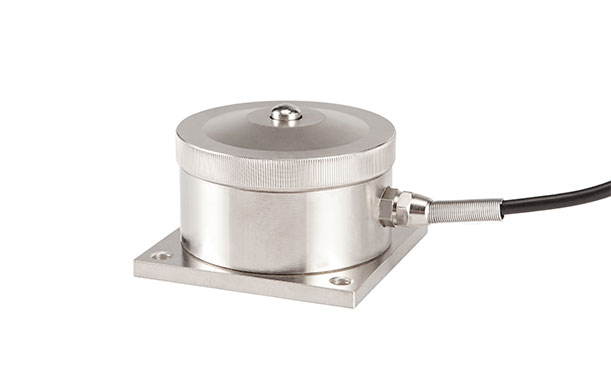

TJH-1 Weighing Load Cell

TJH-1 is a kind of load cell sensor for weight measurement. These classic products(TJH-1 weighing load cell) are mature and reliable and have obtained utility model patents. The unique T-type overload protection device has the strong anti-overload capability. It has a bottom plate with 4 mounting holes for easy installation. Optional integrated standard signal output, such as 4~20mA or 0~5V three-wire load cell amplifier. Suitable for belt scales, batching scales, etc.

tjh 1 load cell measurement
tjh 1 load cell for force measurement
tjh 1 load cell for weight measurement

Specifications of TJH-1 Weighing Load Cell


Technical Parameter
Rated Load30N~1.5 kN
Comprehensive Precision0.05~0.1% FS
Sensitivity2.0 mV/V
Creep±0.05% FS/30min
Zero Output±1% FS
Temperature Effect On Zero±0.05% FS/10℃
Temperature Effect On Output±0.05% FS/10℃
Operating Temperature Range-20~+65 ℃
Input Resistance380±10 Ω
Output Resistance350± 3 Ω
Insulation Resistance>5000 MΩ
Load Cell Mode Of ConnectionInput+: Red
Input-: Black
Output+: Green
Output-: White
Safe Load Limit150% FS
Bridge VoltageReference 10V DC
MaterialAlloy Steel
Amplifier Mode of ConnectionPower: Red
Public Side: Blue
Output: White


Dimension Drawing of TJH-1 Weighing Load Cell

Dimension Drawing of TJH-1 Weighing Load Cell

Features of TJH-1 Weighing Load Cell

Features of TJH-1 Weighing Load Cell
  • 0.05% FS accuracy
  • Compression only load cell
  • Comes with indenter and mounting base plate
  • Unique T-type overload protection
  • Optional built-in transmitter
  • Eccentric load compensated
  • Utility model patents
