MAKE FORCE SENSORS SAFER AND SMARTER
Widely used in various occasions requiring force measurement and process monitoring.

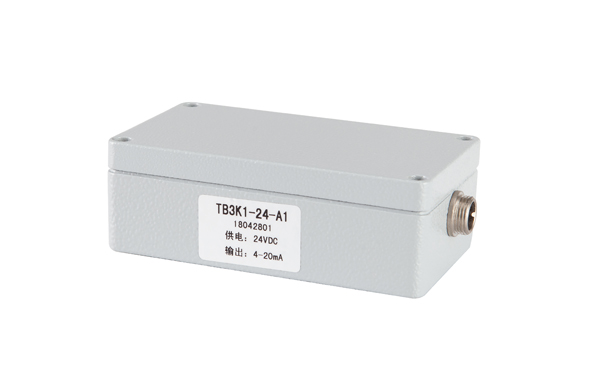

TB3K Weighing Transmitter

1. In addition to the characteristics of ordinary transducers, it can also reduce the harmonic interference caused by transducers.

2. Good electromagnetic tolerance(EMS).


TB3K Weighing Transmitter

Specifications of TB3K Weighing Transmitter


Technical Parameter
Rated Input±20 mV
Rated OutputV1: 0~5 V
V2: 0~10 V
V3: 0~±5 V
V4: 0~±10 V
A1: 4-20 mA
Simultaneously Output V1+A1
Precision≤±0.1% FS
Supply Voltage10(12)~36V DC
Operating Temperature Range-20~70 ℃
Protection LevelIP65
SizeSingle-channel: 110*64*37 mm
Multi-channel: 158*100*65 mm
