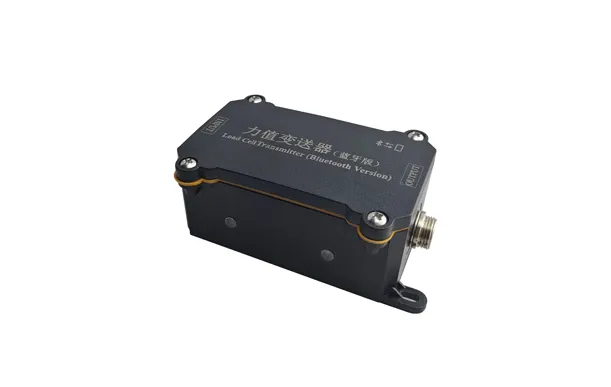

1.load cell amplifier（Bluetooth version）not only compact in size and high accuracy,has a high waterproof rating.
2.It has good electromagnetic tolerance and signal filtering function.
3.Bluetooth Ble4.2 can be used to connect mobile devices.
4.Can be used in conjunction with WeChat mini programs for debugging operations.
5.Ability to withstand interference：EFT(Electric Fast Transient Pulse Group): National Standard Level 4;
SUG(Wave）：National Standard Level 4.
6.Reference power consum ption: 24V power supply.350Ω load, full load working current about 25mA
7.Multi channel sensors can be used with junction boxes
| Technical Parameter | |
| Supply Voltage | 9-36V DC |
| Rated Output | V1:0-5V |
| V2:0-10V | |
| A1:4-20mA | |
| A2:12±8mA | |
| Precision | ≤0.05%FS |
| Sampling frequency | 80Hz |
| Operating Temperature Range | -20~70 ℃ |
| Protection Level | IP65 |
| Size | 140*103*42mm |
