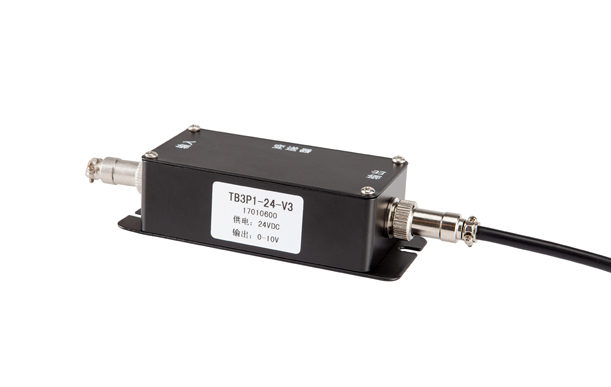

TB3P Weighing Transmitter

The function of the transmitter is to precisely amplify the mV signal output from the sensor and convert the mechanical quantity into a standard current and voltage signal.

1. Small size, light weight, and high-cost performance.

2. Power surge protection, input reverse connection protection.

3. Various output forms can be selected to meet the requirements of different users.

4. Wiring using aviation socket.

5. Shell with mounting holes for easy installation.


TB3P Weighing Transmitter

Specifications of TB3P Weighing Transmitter


Technical Parameter
Rated Input±20 mV
Rated OutputV1: 0~5 V
V2: 0~10 V
V3: 0~±5 V
V4: 0~±10 V
A1: 4~20 mA
Precision≤±0.2% FS
Supply Voltage12 or 24V DC
Operating Temperature Range-20~70 ℃
Protection LevelIP54
Size90*45*30 mm
