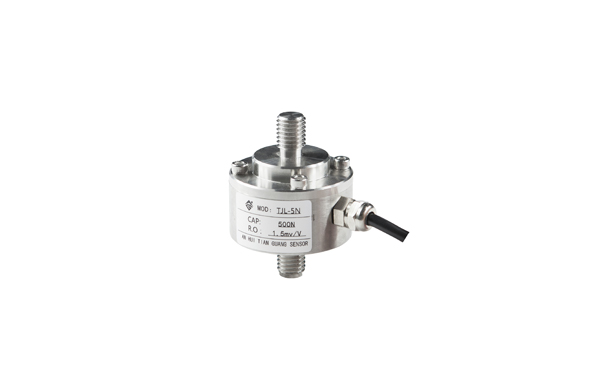

TJL-5N Stainless Steel Load Cell

Simple structure, high reliability and good interchangeability. Suitable for various proportioning scales, hopper scales, hook scales, etc.

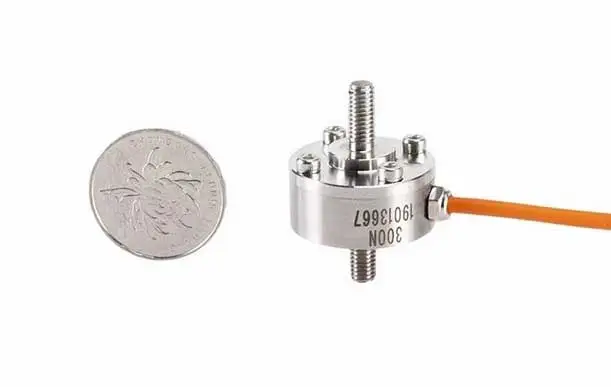

tjl 5n tension loadcells

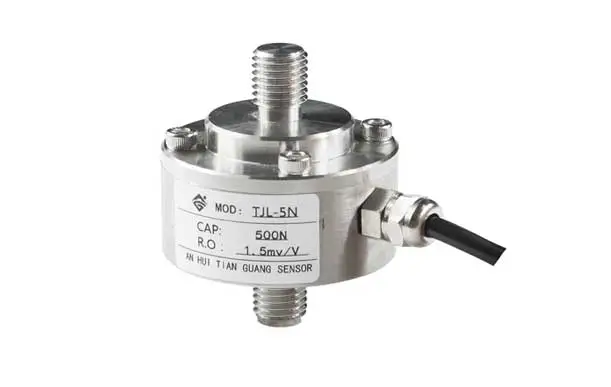

tjl 5n stainless steel load cell

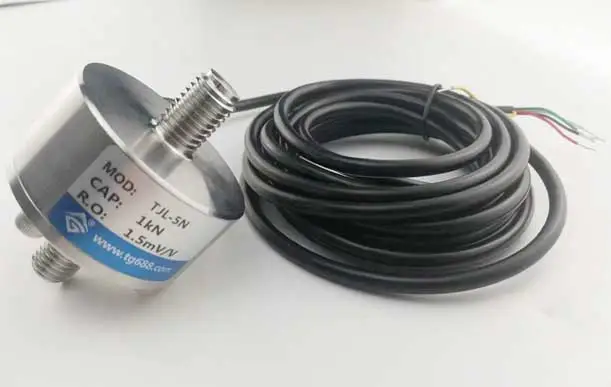

tjl 5n web tension load cell

Specifications of TJL-5N Stainless Steel Load Cell


Technical Parameter
Rated Load0.1~20 kN
Comprehensive Precision0.3% FS
Sensitivity1.0~2.0 mV/V
Creep±0.1% FS/30min
Zero Output±1% FS
Temperature Effect On Zero±0.05% FS/10℃
Temperature Effect On Output±0.05% FS/10℃
Operating Temperature Range-20~+65 ℃
Input Resistance380±10 Ω
Output Resistance350± 3 Ω
Insulation Resistance>5000 MΩ
Safe Load Limit150% FS
Bridge VoltageReference 10V DC
MaterialAlloy Steel or Stainless Steel
Load Cell Mode Of ConnectionInput+: Red
Input-: Black
Output+: Green
Output-: White

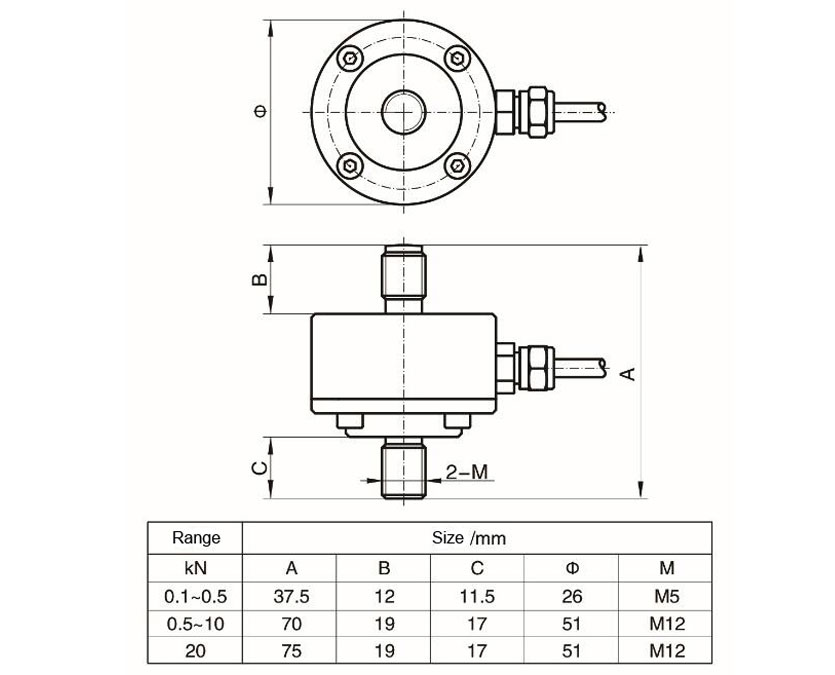

Dimension Drawing of TJL-5N Stainless Steel Load Cell

Dimension Drawing of TJL-5N Stainless Steel Load Cell
