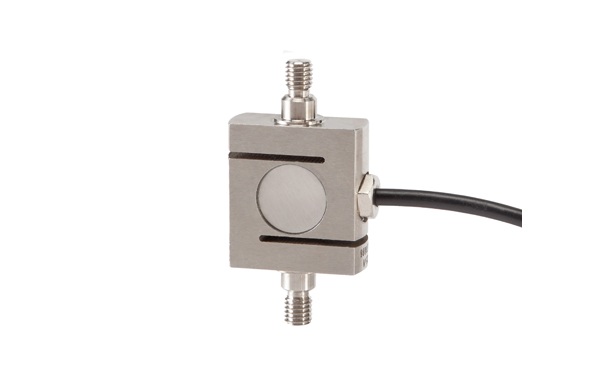

TJL-3B Stainless Steel Load Cell

This type tension load cell is made by stainless steel, high precision, small size. Suitable for force detection equipment such as medical instruments, electronic scales, hopper scales, etc.


tjl 3b tension load cell
tjl 3b stainless steel load cell
tjl 3b threaded load cell

Specifications of TJL-3B Stainless Steel Load Cell


Technical Parameter
Rated Load0.5~1.5 kN
Comprehensive Precision0.02~0.05% FS
Sensitivity2.0 mV/V
Creep±0.02% FS/30min
Zero Output±1% FS
Temperature Effect On Zero±0.02% FS/10℃
Temperature Effect On Output±0.02% FS/10℃
Operating Temperature Range-20~+65 ℃
Input Resistance380±10 Ω
Output Resistance350± 3 Ω
Insulation Resistance>5000 MΩ
Safe Load Limit150% FS
Bridge VoltageReference 10V DC
MaterialStainless Steel
Load Cell Mode Of ConnectionInput+: Red
Input-: Black
Output+: Green
Output-: White


Dimension Drawing of TJL-3B Stainless Steel Load Cell

Dimension Drawing of TJL-3B Stainless Steel Load Cell
