TJH-3 Column Type Load Cell

Wide range, strong anti-overload capability. These column load cells are widely used in pharmaceutical and chemical, coal metallurgy, electronic truck scales, railway scales, storage scales, tanks and other large tonnage measuring equipment.

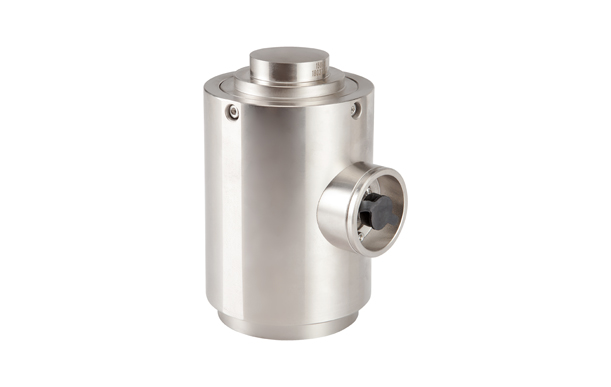

tjh 3 column type load cell
tjh 3 rocker column load cell
tjh 3 load cell for tank weighing system

Specifications of TJH-3 Column Type Load Cell


Technical Parameter
Rated Load150~3000 kN
Comprehensive Precision0.05~0.1% FS
Sensitivity2.0 mV/V
Creep±0.05% FS/30min
Zero Output±1% FS
Temperature Effect On Zero±0.03% FS/10℃
Temperature Effect On Output±0.03% FS/10℃
Operating Temperature Range-20~+65 ℃
Input Resistance380±10 Ω
Output Resistance350± 3 Ω
Insulation Resistance>5000 MΩ
Safe Load Limit150% FS
Bridge VoltageReference 10V DC
MaterialAlloy Steel
Load Cell Mode Of ConnectionInput+: Red
Input-: Black
Output+: Green
Output-: White


Dimension Drawing of TJH-3 Column Type Load Cell

Dimension Drawing of TJH-3 Column Type Load Cell
