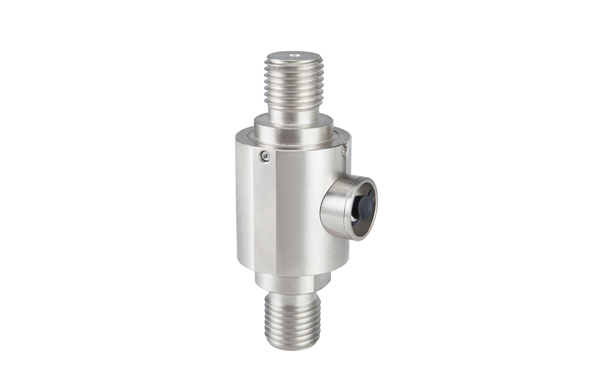

TJL-8 Column Type Rod End Load Cell

With the characteristics of the wide range of measurements, safe and reliability, our column-type tension load cell is suitable for the measurement and control of electronic scales, lifting equipment and various force values.


tjl 8 column type tension load cell
tjl 8 rod end load cell
tjl 8 tension load cell

TJL-8 Column Type Rod End Load Cell Specifications


Technical Parameter
Rated Load100~3000 kN
Comprehensive Precision0.05~0.1% FS
Sensitivity1.5~2.0 mV/V
Creep±0.05% FS/30min
Zero Output±1% FS
Temperature Effect On Zero±0.05% FS/10℃
Temperature Effect On Output±0.05% FS/10℃
Operating Temperature Range-20~+65 ℃
Input Resistance380±10 or 750±15 Ω
Output Resistance350± 3 or 750± 5 Ω
Insulation Resistance>5000 MΩ
Safe Load Limit150% FS
Bridge VoltageReference 10V DC
MaterialAlloy Steel
Load Cell Mode Of ConnectionInput+: Red
Input-: Black
Output+: Green
Output-: White


TJL-8 Column Type Tension Load Cell Dimension Drawing

TJL-8 Column Type Tension Load Cell Dimension Drawing
