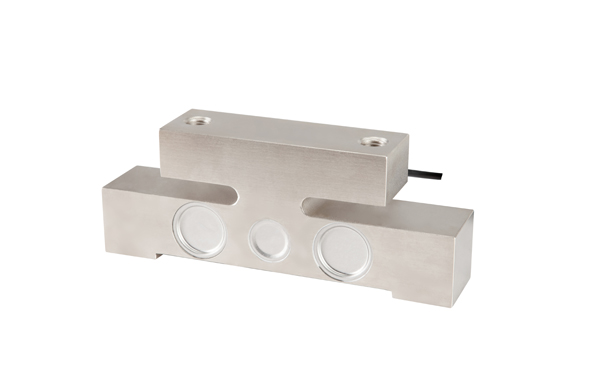

TJH-6C Double Ended Shear Beam Load Cell

Reasonable structure, easy to use and install.It is suitable for the measurement of vehicle-specific scales, crane scales, vehicle wheels and axial forces.


TJH-6C Double Ended Shear Beam Load Cell

Specifications of TJH-6C Double Ended Shear Beam Load Cell


Technical Parameter
Rated Load10~300 kN
Comprehensive Precision0.02~0.05% FS
Sensitivity2.0 mV/V
Creep±0.02% FS/30min
Zero Output±1% FS
Temperature Effect On Zero±0.02% FS/10℃
Temperature Effect On Output±0.02% FS/10℃
Operating Temperature Range-20~+65 ℃
Input Resistance750±15 Ω
Output Resistance700± 5 Ω
Insulation Resistance>5000 MΩ
Safe Load Limit150% FS
Bridge VoltageReference 10V DC
MaterialAlloy Steel
Load Cell Mode Of ConnectionInput+: Red
Input-: Black
Output+: Green
Output-: White


Dimension Drawing of TJH-6C Double Ended Shear Beam Load Cell

Dimension Drawing of TJH-6C Double Ended Shear Beam Load Cell
