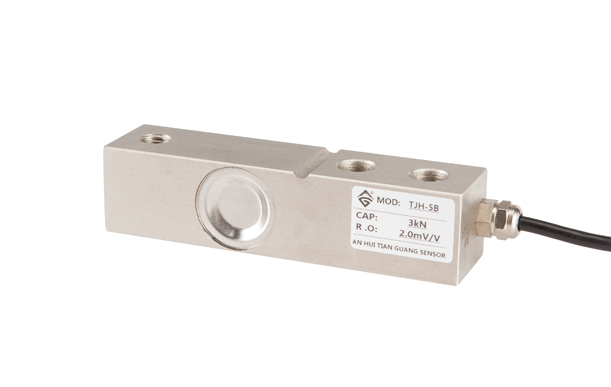

TJH-5B Shear Beam Load Cell

One end fixed and one end loaded, low center of gravity, the installation is convenient and the interchangeability is good. This beam type load cell is suitable for truck scale, electronic scale, platform scale, hopper scale, etc. It can choose built-in amplifier, output 4 ~ 20mA or 0 ~ 5V analog signal.


tjh 5b warehouse floor scales
tjh 5b warehouse weighing scales
tjh 5b warehouse counting scales

Specifications of TJH-5B Shear Beam Load Cell


Technical Parameter
Rated Load2~100 kN
Comprehensive Precision0.02~0.05% FS
Sensitivity2.0 mV/V
Creep±0.02% FS/30min
Zero Output±1% FS
Temperature Effect On Zero±0.02% FS/10℃
Temperature Effect On Output±0.02% FS/10℃
Operating Temperature Range-20~+65 ℃
Input Resistance380±10 Ω
Output Resistance350± 3 Ω
Insulation Resistance>5000 MΩ
Safe Load Limit150% FS
Bridge VoltageReference 10V DC
MaterialAlloy Steel or Stainless Steel
Load Cell Mode Of ConnectionInput+: Red
Input-: Black
Output+: Green
Output-: White


Dimension Drawing of TJH-5B Shear Beam Load Cell

Dimension Drawing of TJH-5B Shear Beam Load Cell
