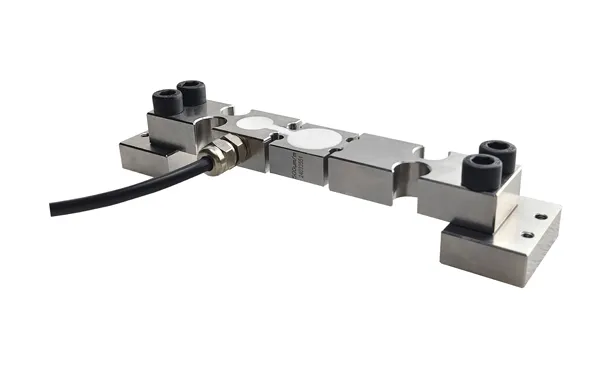

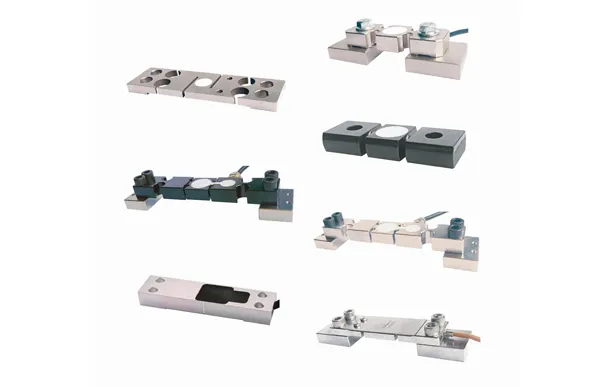

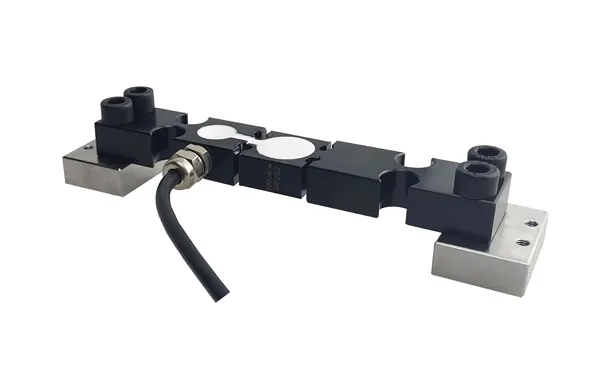

Suitable for tank weighing, heavy equipment and large structure stress monitoring and pressure monitoring.The sensor has the advantages of simple installation,no need to change the original structure of the equipment,can be installed without stopping the machine, and canreliably measure the maximum force value.
| Technical Parameter | |
| Rated load | 300~1000με |
| Comprehensive Precision | 1~2%FS |
| Sensitivity | 1.0~2.0mV/V |
| Creep | ±0.05%FS/30min |
| Zero Output | ±1%FS |
| Temperature Effect On Zero | ±0.1% FS/10℃ |
| Temperature Effect On Output | ±0.1% FS/10℃ |
| Operating Temperature Range | -20℃~+65℃ |
| Input Resistance | 380±30Ω |
| Output Resistance | 350±5Ω |
| Insulation Resistance | ＞5000 MΩ |
| Safe Load Limit | 150% FS |
| Bridge Voltage | Reference 10V DC |
| Material | Alloy Steel or Stainless Steel |
| Load Cell Mode Of Connection | Input+: Red |
| Input-: Black | |
| Output+: Green | |
| Output-: White | |
